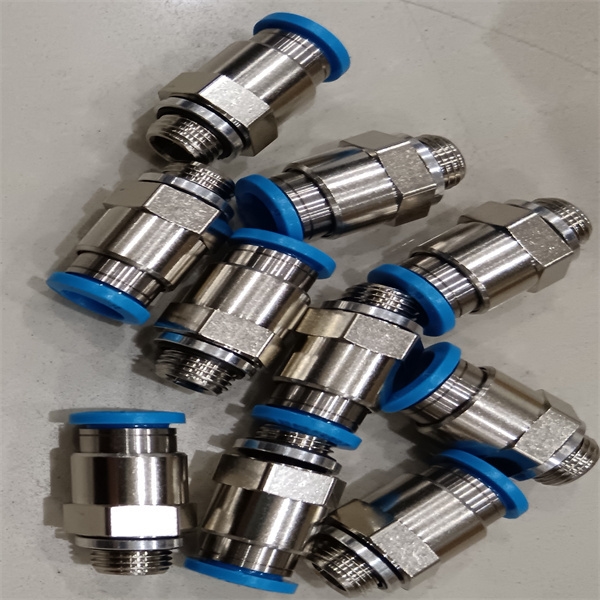

FESTO快插接头参数
Corrosion resistance class CRC3) 3
Suitable for use in the food industry As per manufacturer's declaration1
with a temperature range up to 80 °C
and a pressure range up to 14 bar.
Tubing O.D.? of 2, 3, 4 and 6 mm
with connecting threads M3, M5, M6,
Observe the operating range of the plastic tubing.
3) CRC3: Corrosion resistance class to Festo standard 940 070
Components with heavy corrosion exposure.FESTO快插接头参数
连接管的尾端与地面供水管连接好。将快插接头的弹性喇叭口密封套与客车上水管进行对接,握住手柄旋转锁紧管,内缩管相对于锁紧管向内移动,锁紧管的内喇叭口压缩内缩管锁紧段,锁紧段纵向的槽缝,减小,使锁紧段压紧弹性喇叭口密封套,弹性喇叭口密封套与客车上水管紧密结合,从而完成水管的对接工作。卸管时,手柄向反方向旋转,锁紧管后退,使内缩管锁紧段恢复自然状态,弹性喇叭口密封套恢复自然状态,可以轻松地将快插接头拉出。
优点
1、密封圈设计成喇叭口形状,很短的时间内(2~3秒)实现车站供水管与客车车厢上水管对接。
2、减轻作业人员的劳动强度,只需握住手柄旋转即可完成对接工作。卸管时,只需轻轻将手柄向反方向旋转,即可使接头快速与客车上水管分离。
